FRP UNDER PANEL
The fiber glass reinforcing plastic (FRP) under panel to be fixed on aerodynamic shaped cab front of electric locos which is fire resistant.
All corners and edges free of air voids.
All synthetic resin fire retardant gel coat.
Pantgraph
The pantograph is used to 25KV AC ,50Hz high speed electric locomotives
Operating voltage
Nominal -25KV,50Hz
Maximum-27.5 KV
Sort time max-30kv for 10 sec
current- 400Amps
Max.extension-2 meters
Working range- 0.25mtr to 2mtr
Max. weight- 200kg Approx
Static upthrust-7kg±0.4kg
Aerodynamic effort-3 to 5 kg at max speed.
Max. folded height-275mm
Raising time -6 to 10 sec.
Lowering time is less than or equal to 10 second.
Water Closet Vacuum Bio-Toilet System
Modern KKI make Water Closet Vacuum Toilet for use in locomotives.
Main Functions
Works on vacuum principle for disposal of waste.
Consists of bacteria containing Bio-digester tank for liquidation of sewage.
Features
Green Toilet/Environment eco friendly.
Made up of Stainless Steel including accessories like Coat Hook, Towel Hook, washing tap, soap dispenser etc.
Control system to monitor the different parameters.
Cab Heater /Ventilation Asm
Cab Heater/Ventilation Asm for use on the electric locomotive in the Loco Pilot cab to maintain the cab temperature during the extreme weather conditions.
Working Voltage 415 /110 V AC
Validated for Vibration levels of upto 3G

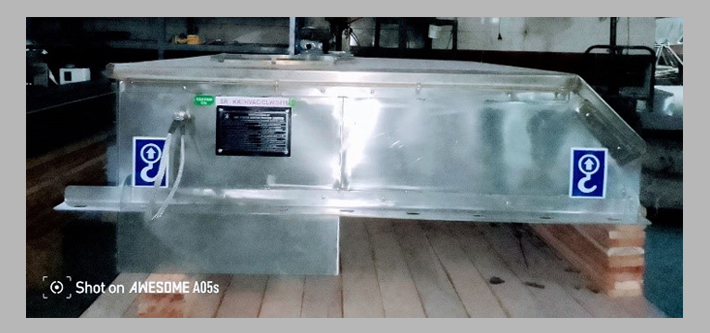

Roof Mounted Compact Heating, Ventilation & Air Conditioning (HVAC) Unit
For use in Electric locomotives cabs.
Main Functions
Heaters to generate heating effect in winters.
Works on Vapor Compression cycle.
Uses R-407c refrigerant gas.
Features
Heating Capacity (Rating) 3 KW.
Cooling Capacity (Rating) 2 TR.
Complies with International standard.
